Creating a small color and size reference card
A reference card in images can serve multiple purposes: on the one hand, a reference card is required to map size from pixels to real world units (e.g., from pixels to millimeters) and to calibrate color and brightness so that they become comparable across images and photographed scenes. On the other hand, including a reference card in every images will ensure that the images are comparable to each other - e.g., in the case of varying brightness or distance from camera and photographed specimen. In this post I will describe how I build small, waterproof reference cards that I used in many of my own studies, and that are increasingly used in other laboratories as well. The main idea is to take little parts of a commercial color reference card and a bit of millimeter paper, and laminate it to form a small, roughly stamp sized plastic card.
Thanks Erica Winslott for your help when making these

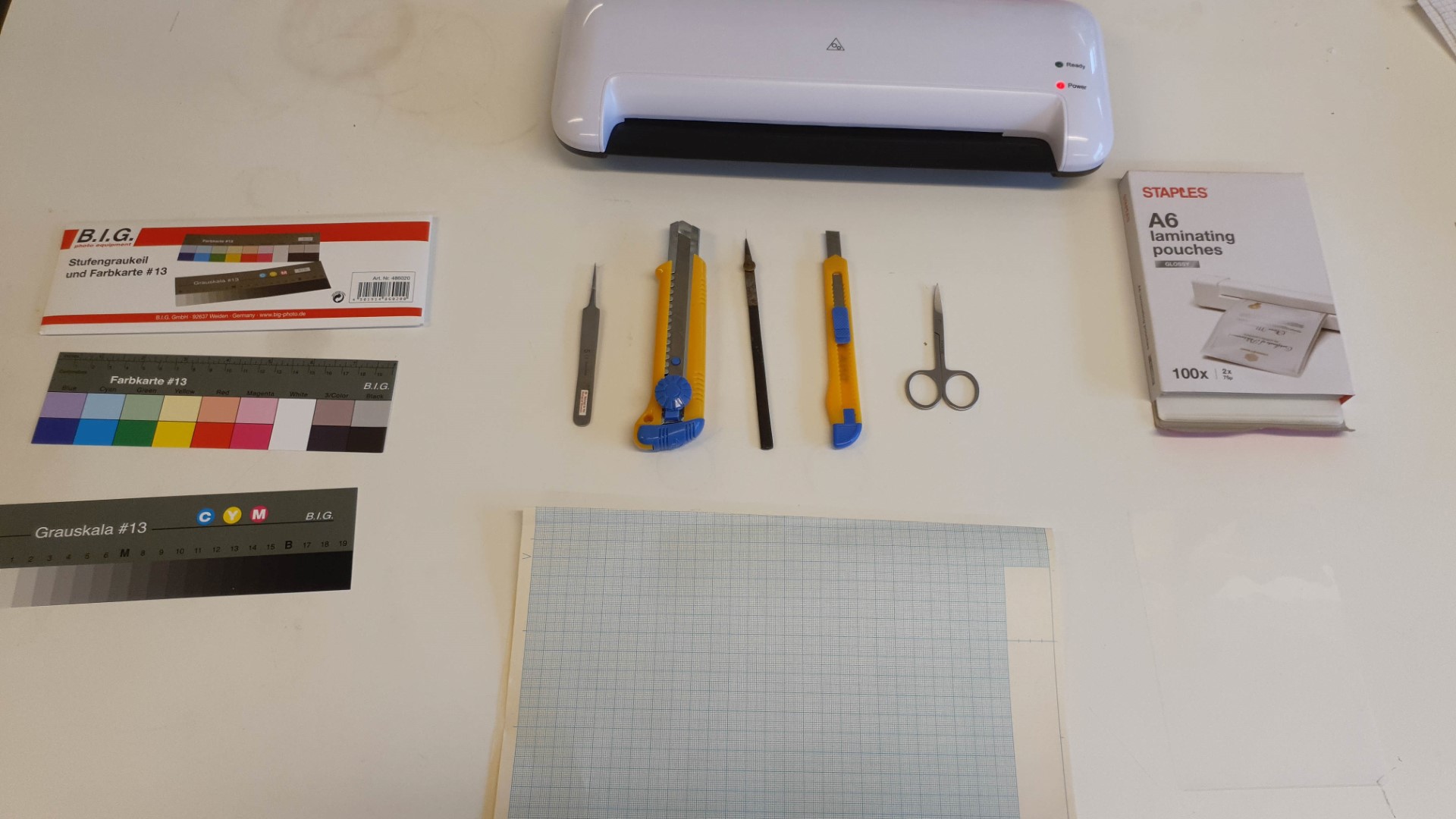

What you need:

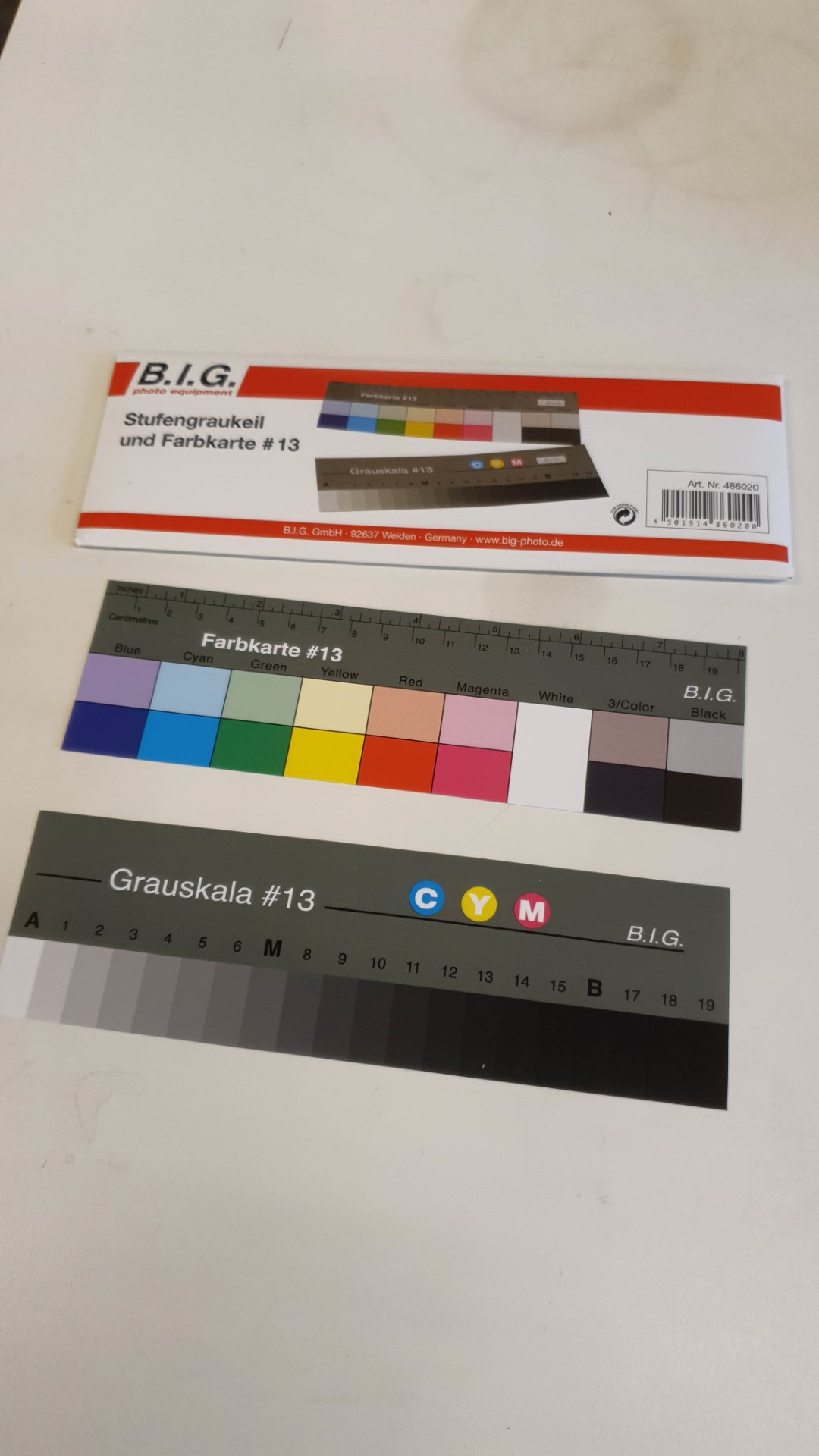

- color separation guide - I use and recommend the KODAK Color Separation Guides and Gray Scales / Q13 1527654
- some mm-paper (a few mm²)

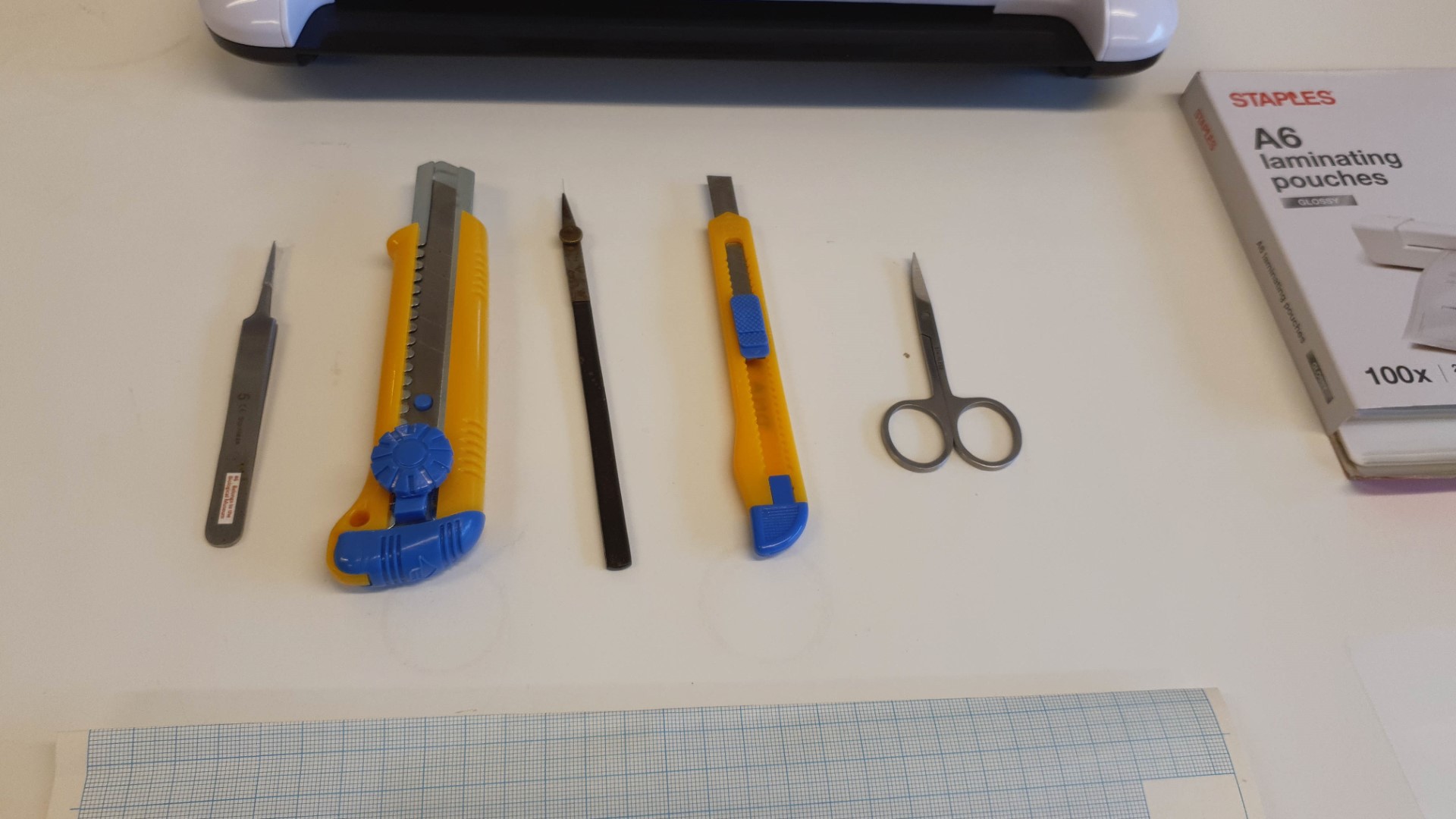

- sharp scissors or paper cutting knifes
- some fine tweezers
- a lamination machine and laminating pouches
- (optional) some tape
2. Cut up tiny squares

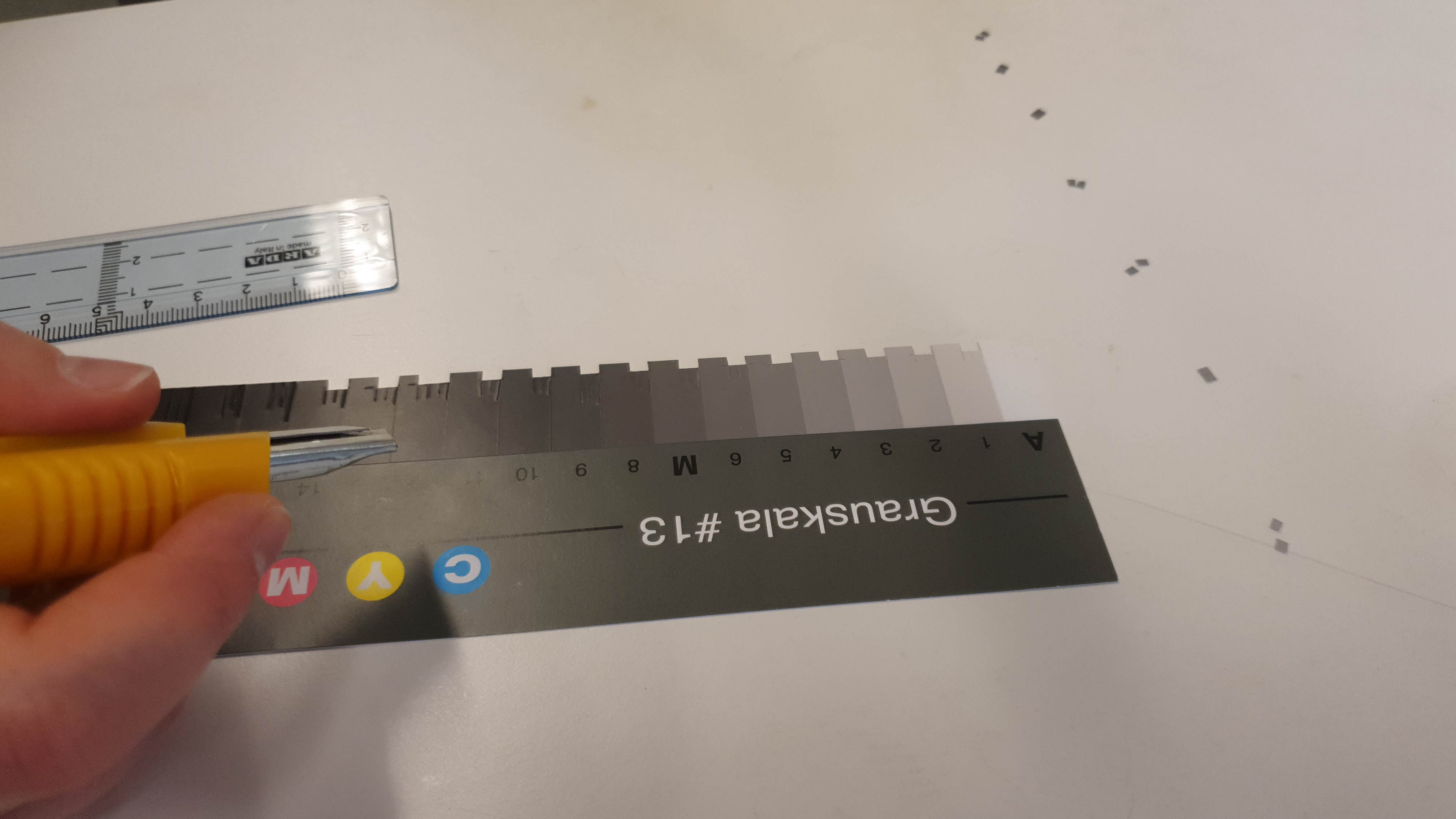

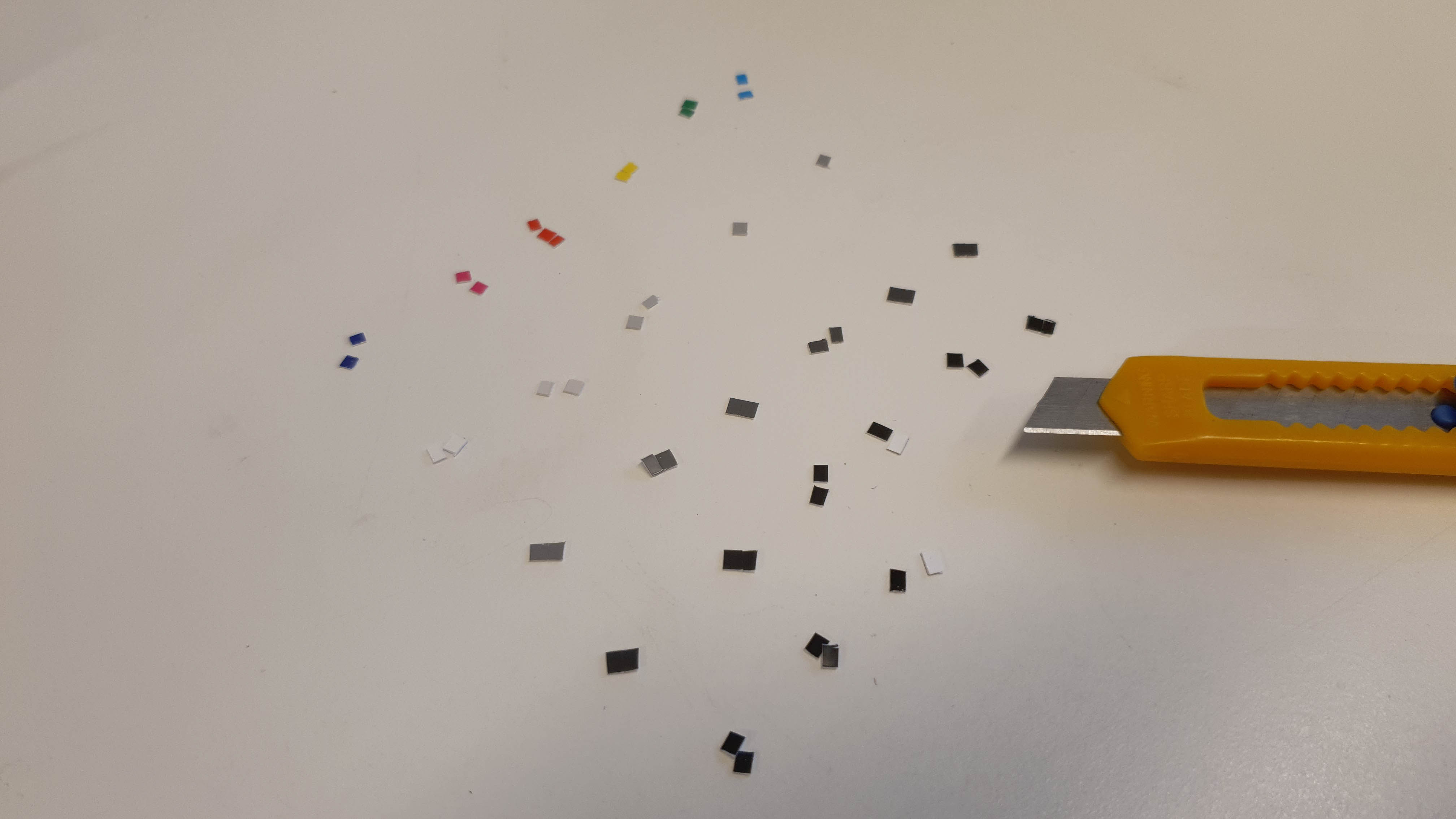

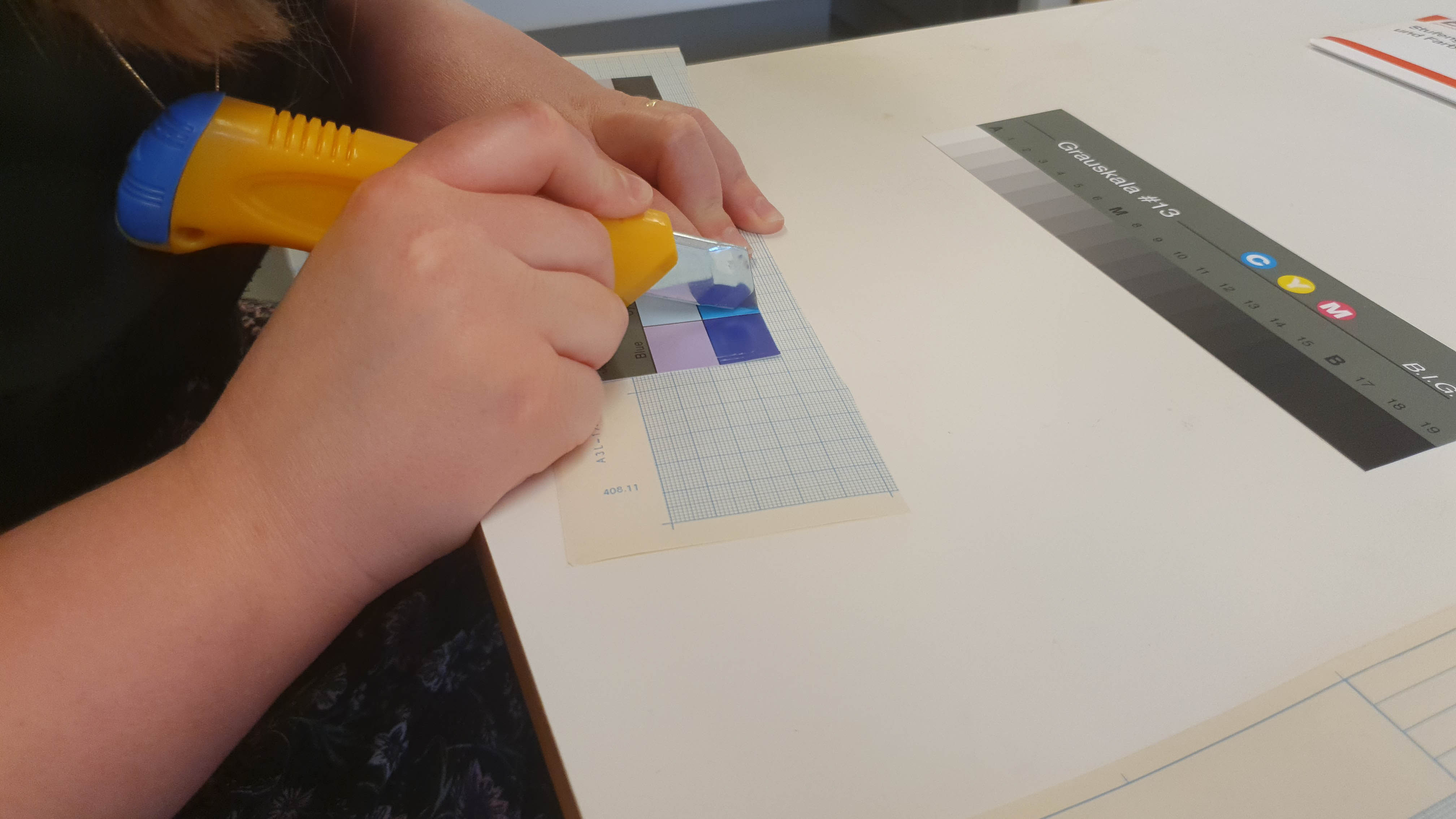

Cut out roughly 1 x 1 mm pieces from the color stripes. The exact size does not matter, but the relative size they will have in the picture later on. In other words, if in the final images the reference card is tiny because you place it next to a huge specimen, the squares should be larger so that enough pixels are featured in every color and gray scale. Note that I only use the color squares with full saturation.
3. Align the squares

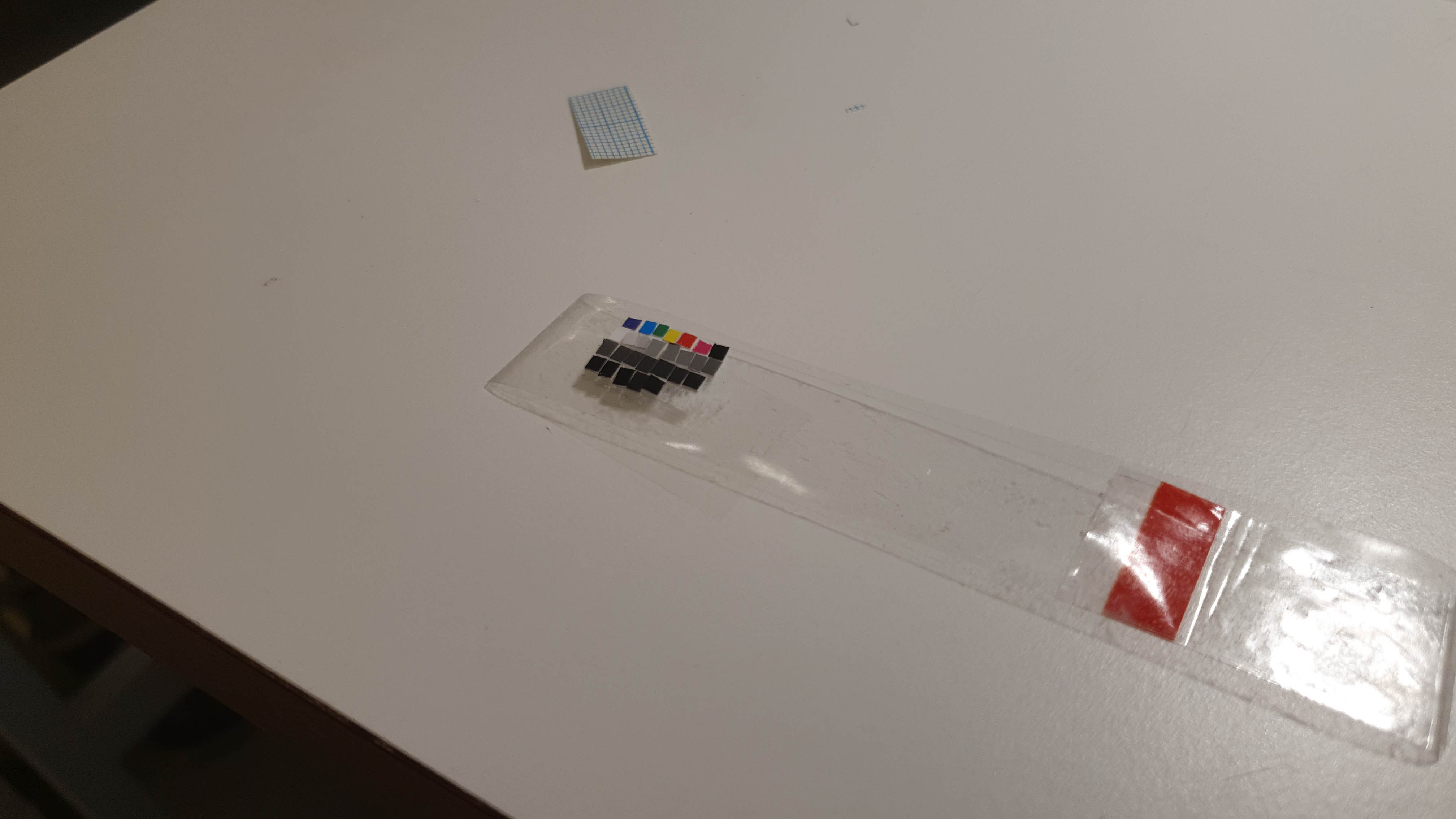

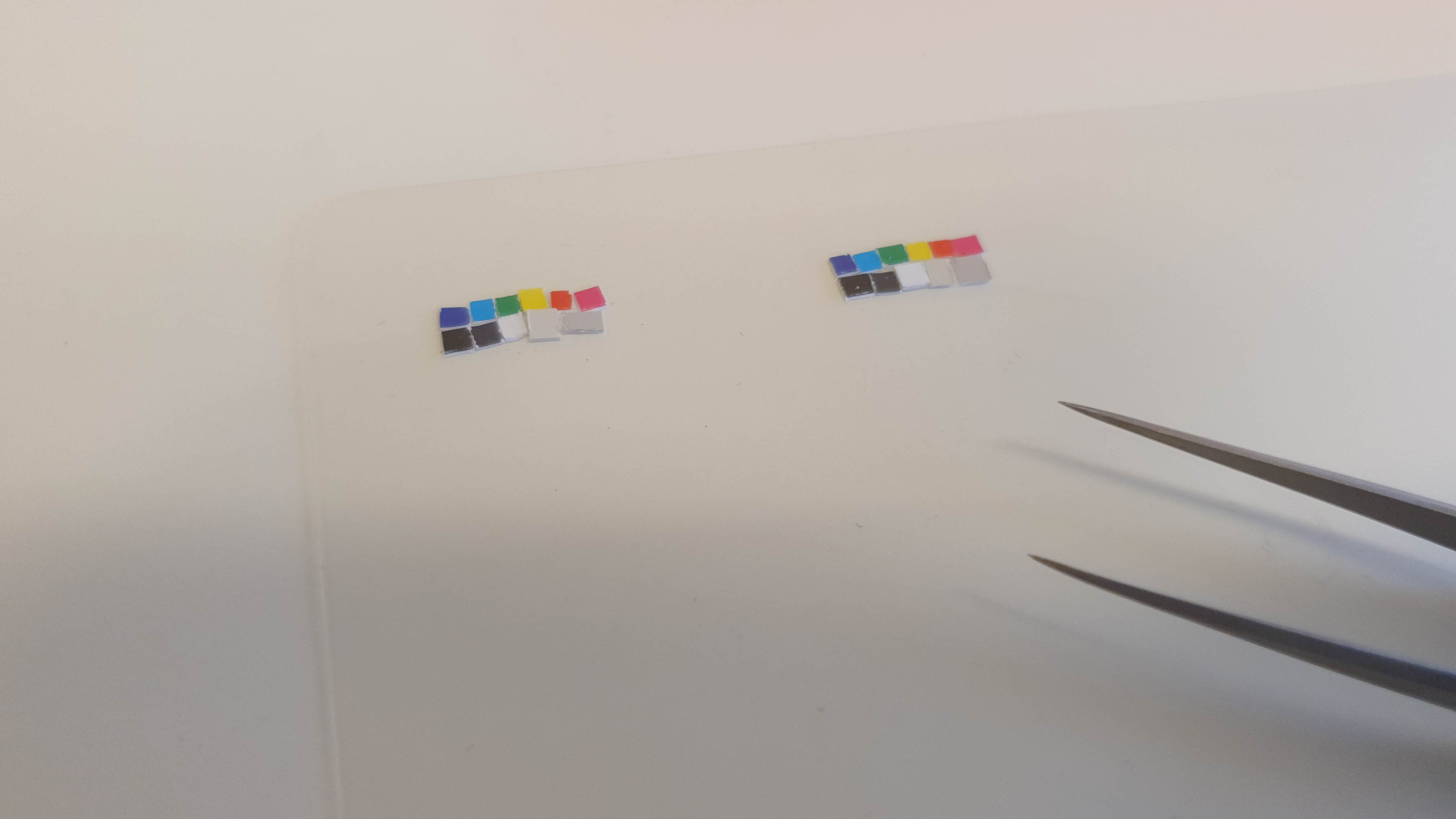

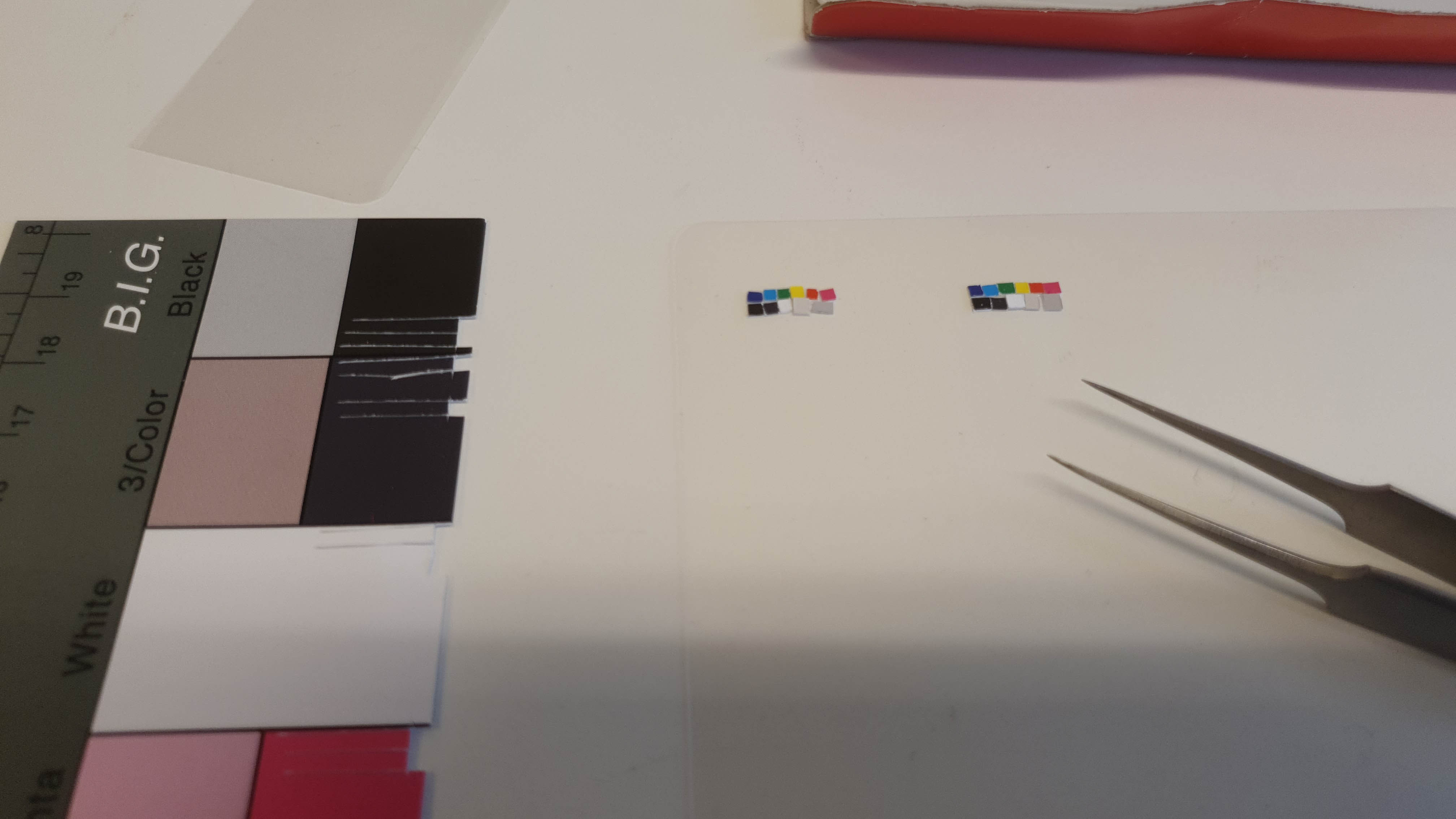

Now place the squares in the opened laminating pouch. This is the tricky part: those pouches can be a bit stiff and may close again, so that the squares are launched all over the place. Patience and a calm hand is your friend here. Don’t forget to add a small stripe of mm-paper.

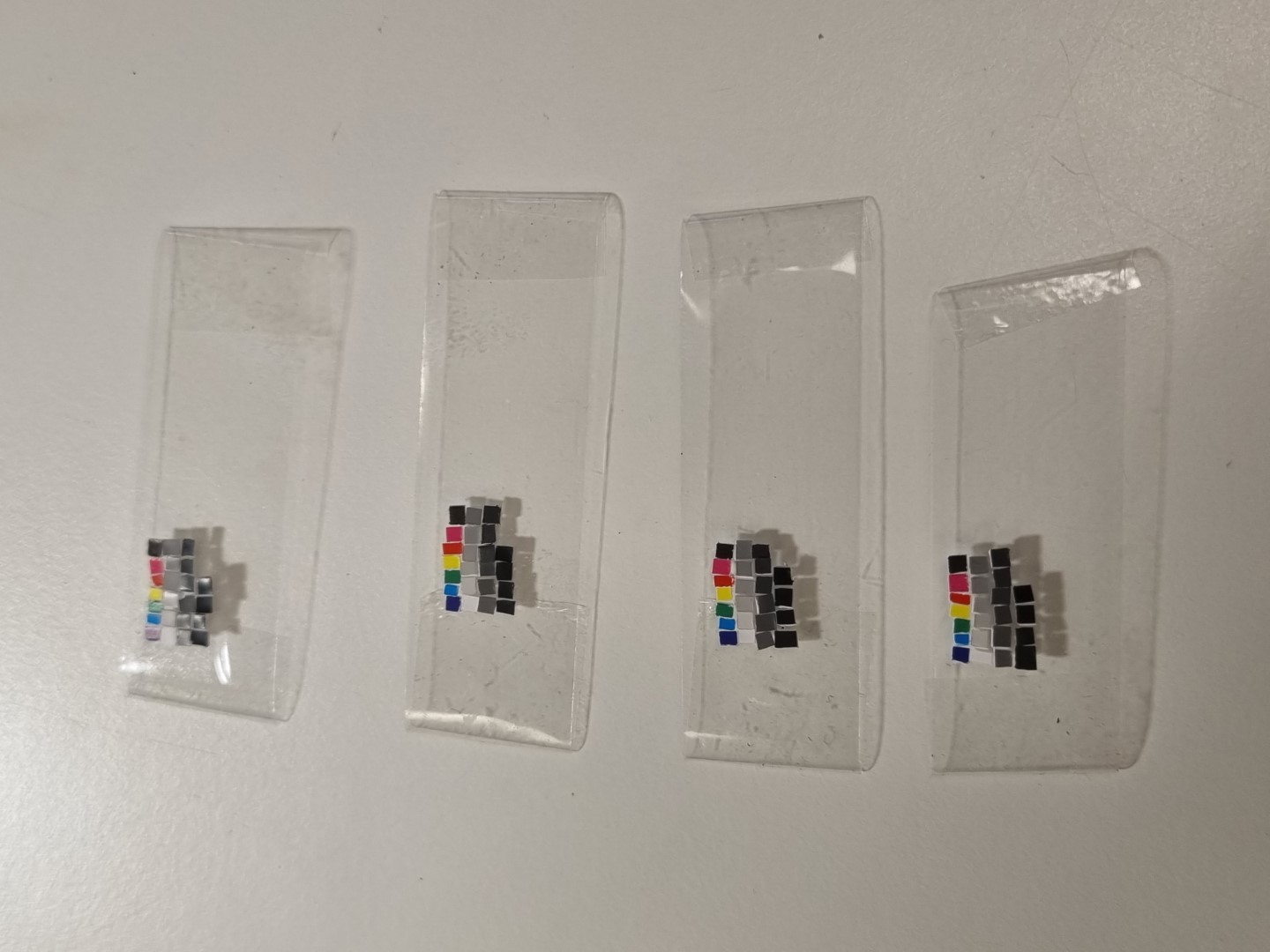

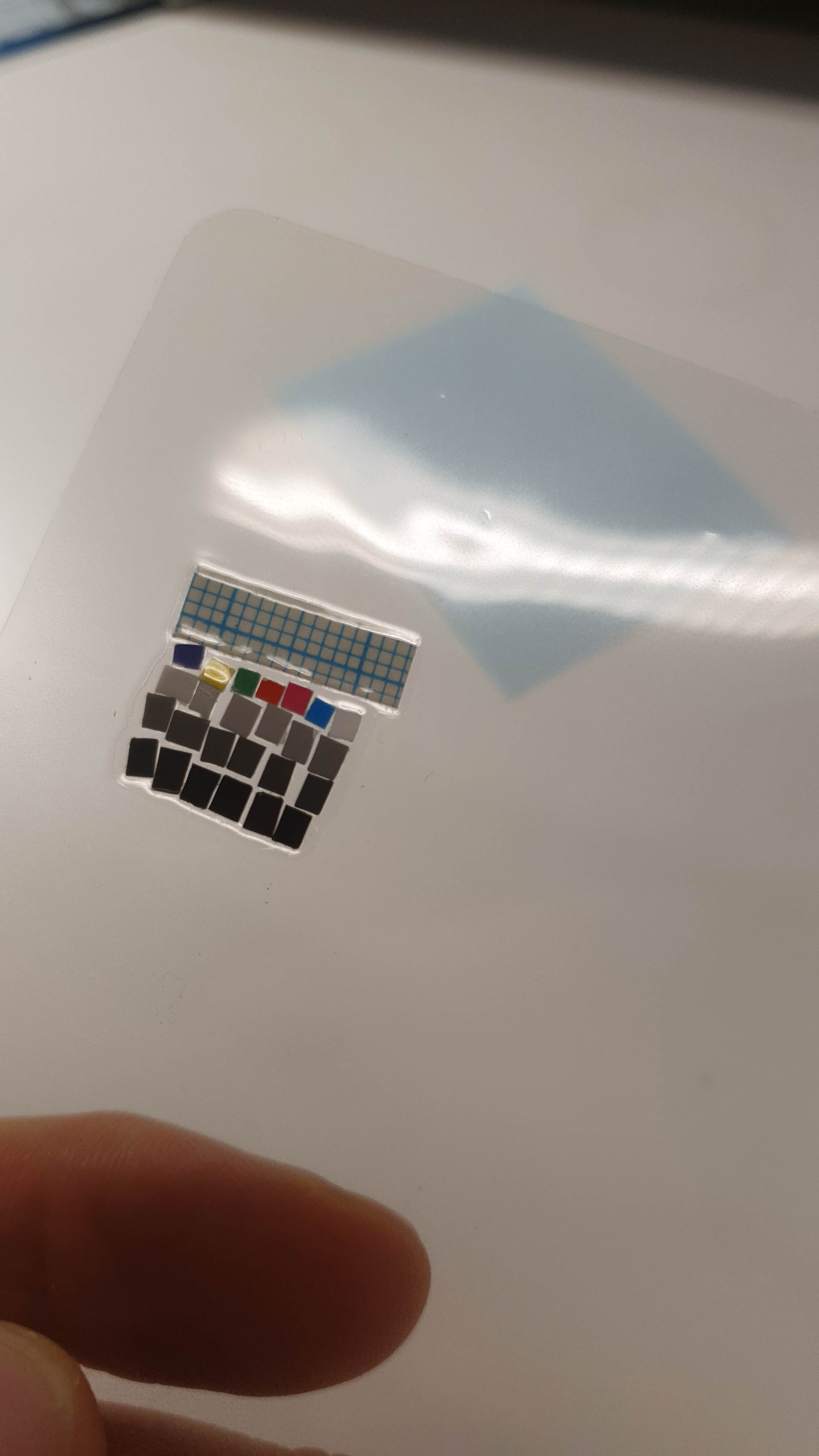

Alternatively, use tape to hold the little squares in place (this was Erica’s idea ):

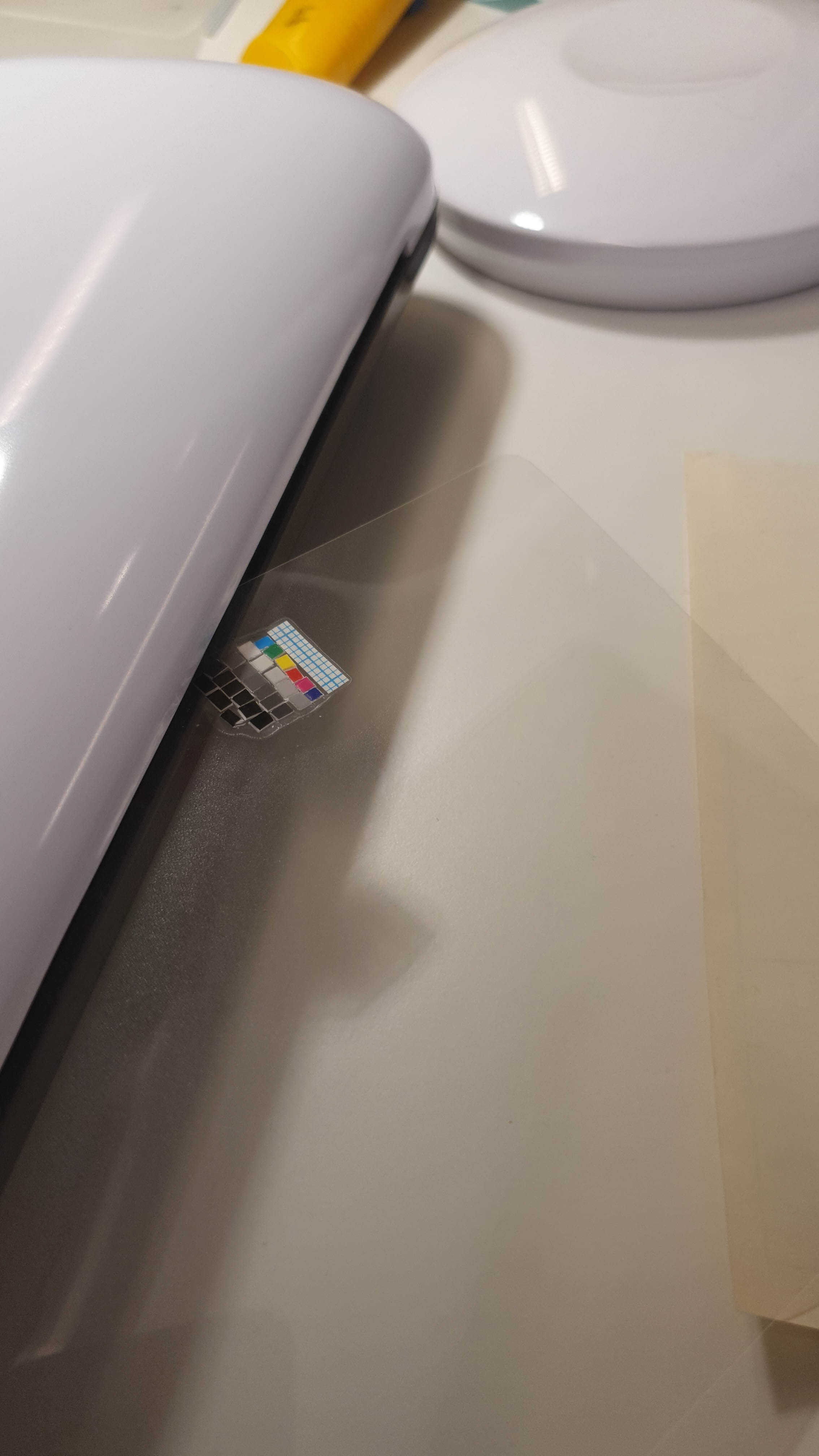

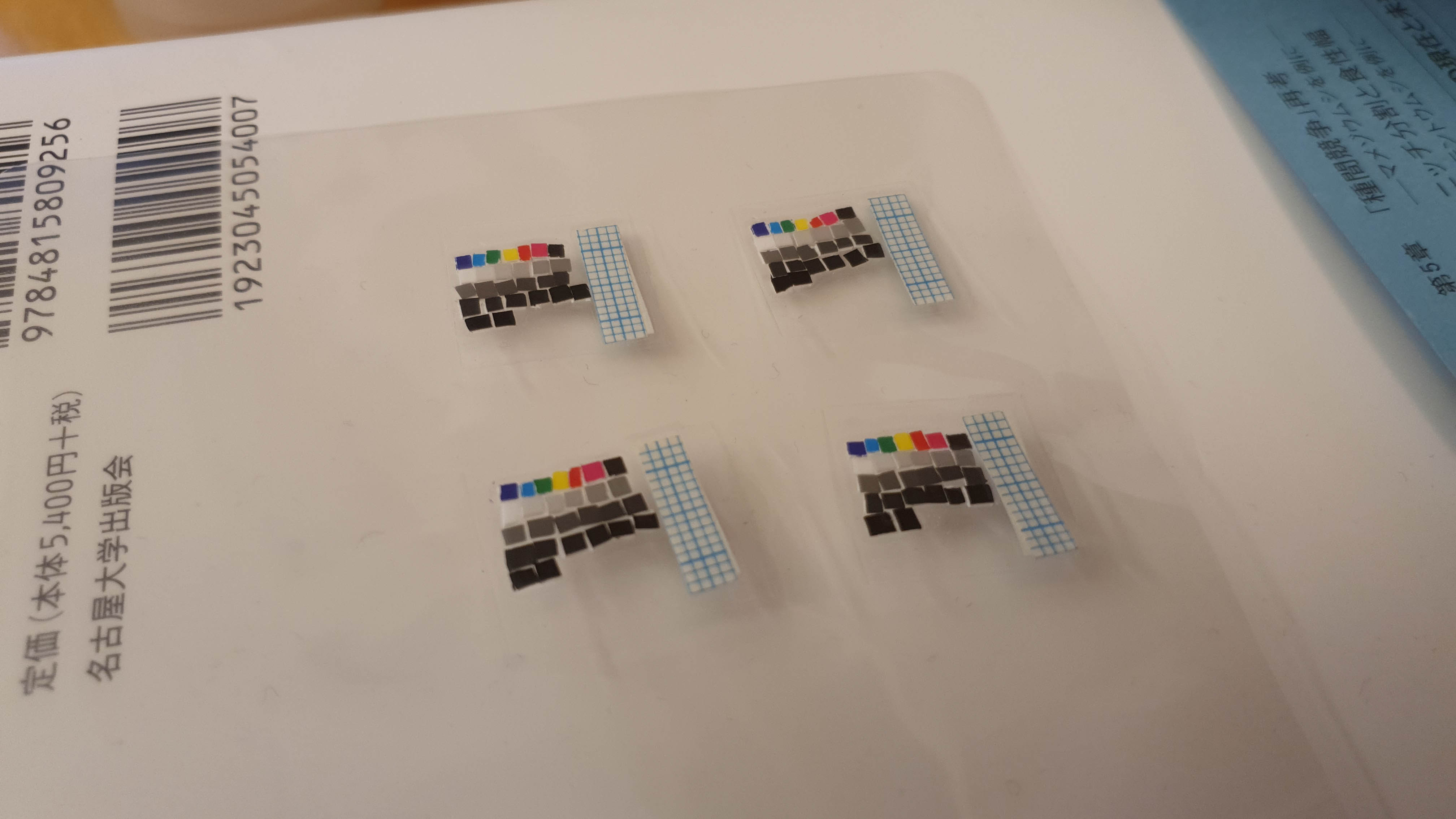

After putting everything together, the pouch is ready to go into the lamination machine. Enter it carefully, so that the squares inside don’t move. Done!
